Motherboard Connector Flex Cable
Samsung Galaxy S22+ Motherboard Connector Flex Cable Replacement
- Fits
- Samsung Galaxy S22+
- Fixes
- Main flex faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

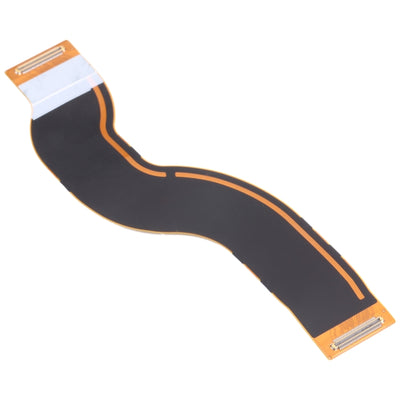

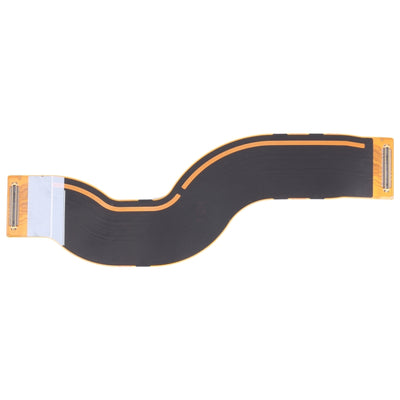

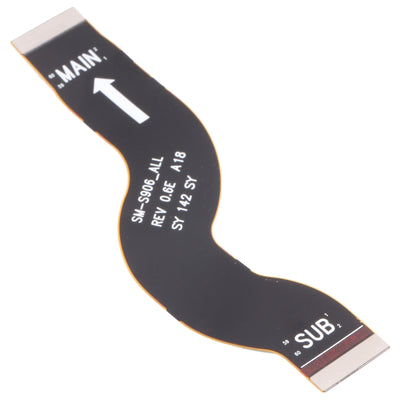

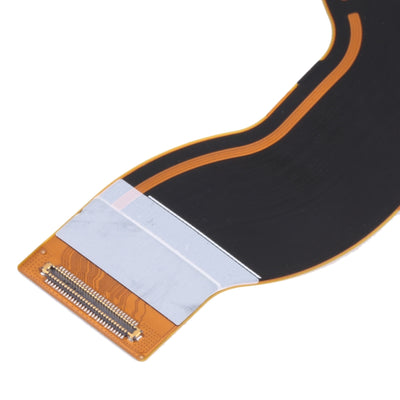

The Galaxy S22+ is built with two boards: the motherboard near the cameras and a lower board by the USB-C port. This flex cable joins them, so a tear or damaged connector can cut off everything on the lower half of the phone.
A damaged main flex can cause no charging, no touch or display, missing sound from the bottom of the phone, or random restarts. The same symptoms can come from other parts, so it is worth having the phone checked by a technician first. Fitting needs the back glass removed and care with small connectors.
Compatibility
Specifications and compatibility
- Part
- Motherboard Connector Flex Cable
- Compatible with
- Samsung Galaxy S22+
- Model numbers
- SM-S906B
- Does not fit
- Galaxy S22, S22 Ultra, S23+ or any other model
- Fixes
- A torn, creased or burnt main flex cable, or damaged flex connectors between the motherboard and lower board
- Does not fix
- Faults on the motherboard itself, a damaged charging port, a faulty screen or a worn battery
- Quality
- Brand new, OEM-quality motherboard connector flex cable. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy S22+
- In the box
- 1 × Galaxy S22+ motherboard connector flex cable. Check the photos for any tools or adhesive included.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The phone stopped charging after a repair or drop, and the port is fine
- Parts connected to the lower board stopped working at the same time
- The phone restarts when pressure is put on the back
- A technician found the main flex torn or its connector damaged
How to check your model
Open Settings › About phone. The model name should read Galaxy S22+, and the model number should start SM-S906B. The model number is also printed on the phone's box.
The Galaxy S22+ has a 6.6-inch flat screen and three rear cameras. The standard S22 is smaller, with a 6.1-inch screen.
Professional installation
How a technician fits this part
- Power the phone off and warm the back glass to soften the adhesive.
- Lift the back glass off and remove the screws and covers over both ends of the flex.
- Disconnect the battery before touching any other connector.
- Unclip both ends of the old flex and peel it gently from the frame.
- Fit the new flex along the same path, press each connector home and reconnect the battery.
- Test charging, display, touch and sound, then refit the covers and seal the back glass.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Galaxy S22+?
Yes, if Settings › About phone shows Galaxy S22+ and the model number starts SM-S906B.
Does it fit the Galaxy S22?
No. The Galaxy S22 (SM-S901B) has a different layout and uses a different flex.
Can a damaged flex be repaired instead?
Not reliably. The flex has many fine tracks, so a creased or torn cable is replaced rather than repaired. The new flex fits in the same path along the frame.
Is it made by Samsung?
No. It is a brand new, OEM-quality motherboard connector flex cable made to fit the Samsung Galaxy S22+, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Galaxy S22+ back glass is glued on, and the flex connectors are small and easy to damage if forced.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders from £5.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
