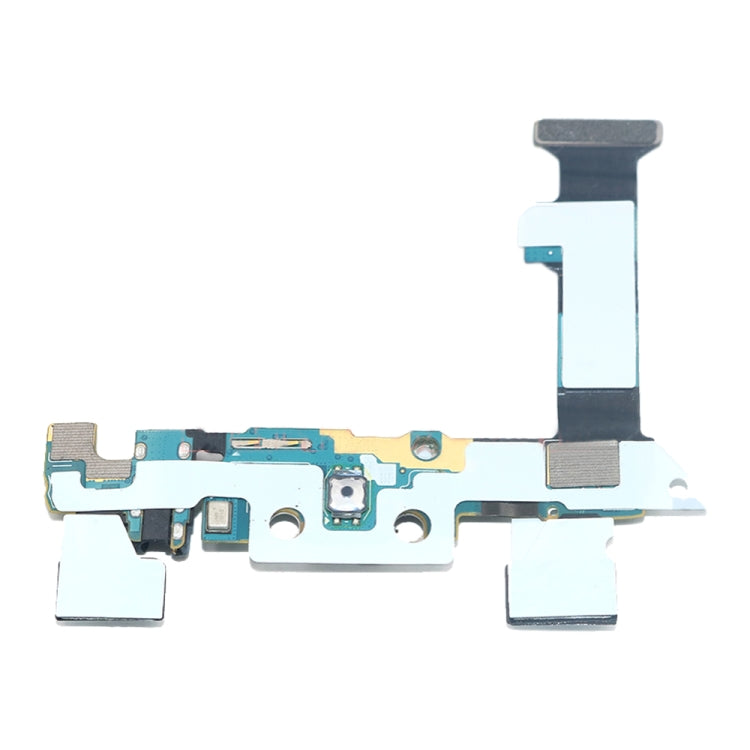

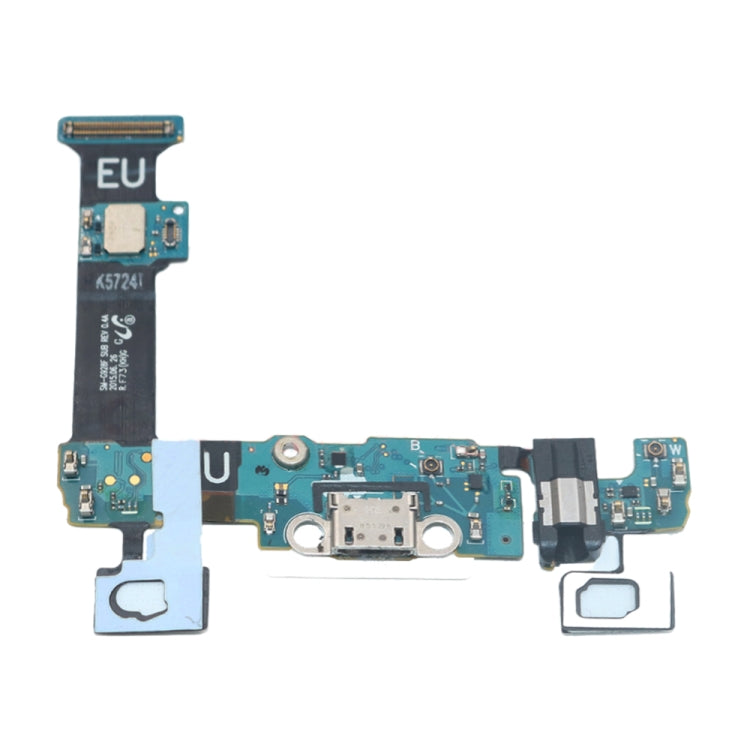

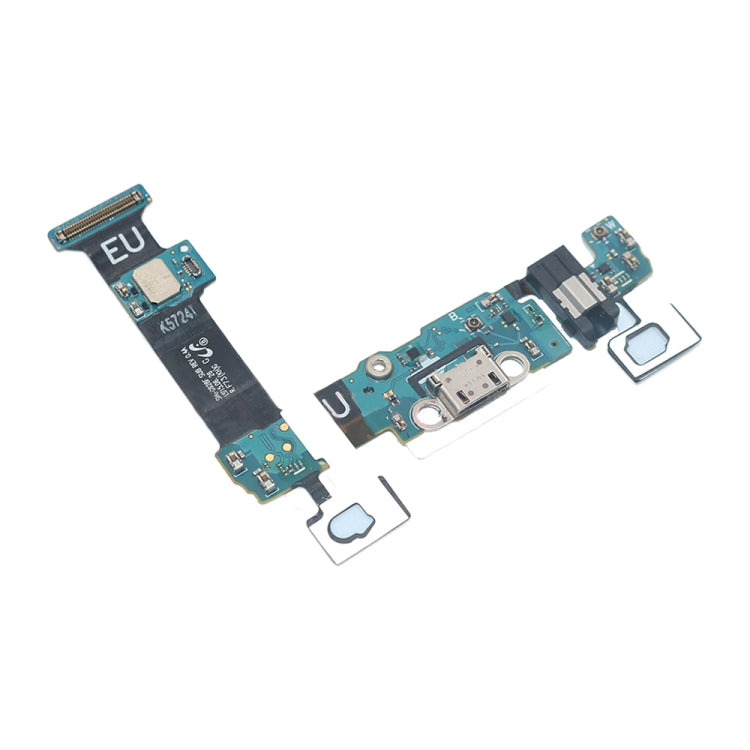

Charging Port Board with IC
Samsung Galaxy S6 Edge+ Charging Port Board with IC Replacement
- Fits
- Samsung Galaxy S6 Edge+
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
The Galaxy S6 Edge+ has its micro-USB port on a small board at the bottom of the phone. The port wears with use and can be damaged by liquid or a bent plug, so charging becomes slow, stops, or works only at an angle.
This board comes with its IC chip already fitted and is made for the Galaxy S6 Edge+ SM-G928F. Try a different cable and charger first, and clear lint from the port gently, before replacing the board.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board with IC
- Compatible with
- Samsung Galaxy S6 Edge+
- Model numbers
- SM-G928F
- Does not fit
- Galaxy S6, Galaxy S6 Edge, Galaxy Note 5 or any other model
- Fixes
- A loose or damaged micro-USB port, intermittent charging and USB data faults
- Does not fix
- A worn battery, wireless charging or motherboard power faults
- Quality
- Brand new, OEM-quality charging port board with IC. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy S6 Edge+
- In the box
- 1 × Galaxy S6 Edge+ charging port board with IC.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The cable wobbles in the port
- Charging works only at a certain angle
- The computer does not recognise the phone
- Charging is very slow with a known good charger
How to check your model
Open Settings › About device. The model name should read Galaxy S6 edge+, not Galaxy S6 edge or Galaxy S6. The model number should read SM-G928F.
The S6 Edge+ has a 5.7-inch curved screen, larger than the 5.1-inch S6 Edge.
Professional installation
How a technician fits this part
- Power off the phone and warm the back glass to soften the adhesive.
- Lift the back glass carefully and disconnect the battery.
- Remove the lower cover and loudspeaker to reach the charging board.
- Unclip the connectors, lift out the old board and fit the new one.
- Reconnect the battery and test charging and a computer connection.
- Refit the parts and back glass with new adhesive.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Galaxy S6 Edge+?
Yes, if Settings › About device shows Galaxy S6 edge+ with model number SM-G928F.
Does it fit the Galaxy S6 Edge?
No. The smaller S6 Edge (SM-G925F) uses a different charging flex, which we sell separately.
What does the IC on the board do?
The IC is a small chip fitted to the board. It comes already mounted, so you do not need to move any chip from your old board.
Is it made by Samsung?
No. It is a brand new, OEM-quality charging port board made to fit the Galaxy S6 Edge+, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The glass back needs heat to remove, and several connectors must be unclipped with care.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders from £5.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
