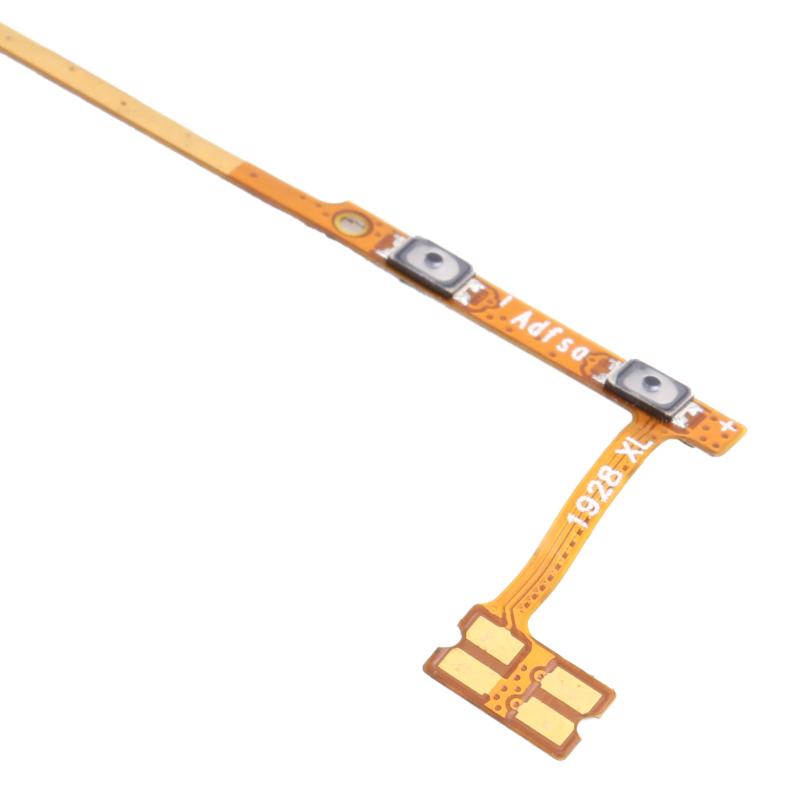

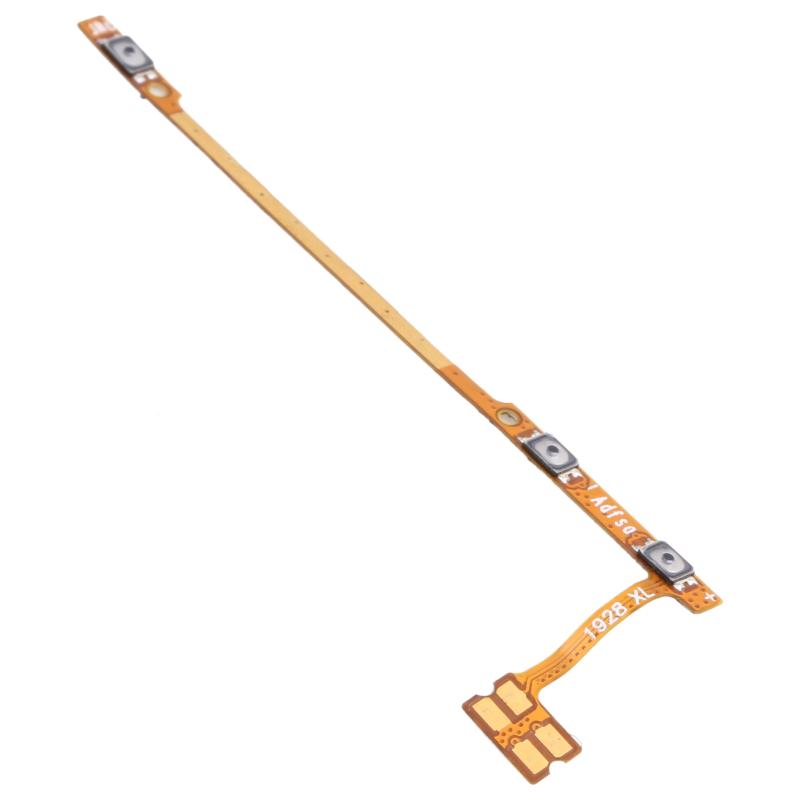

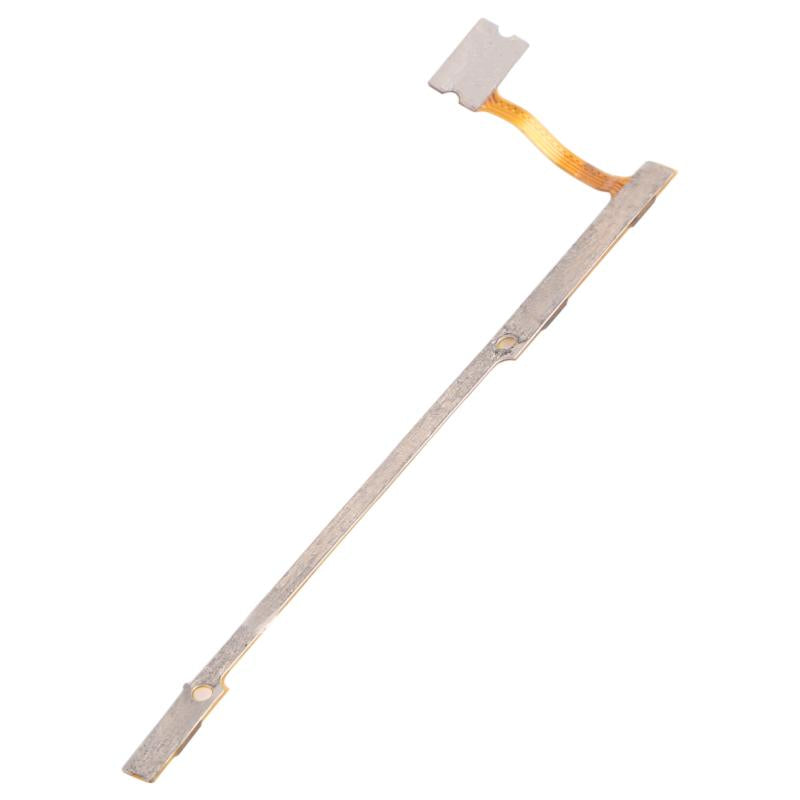

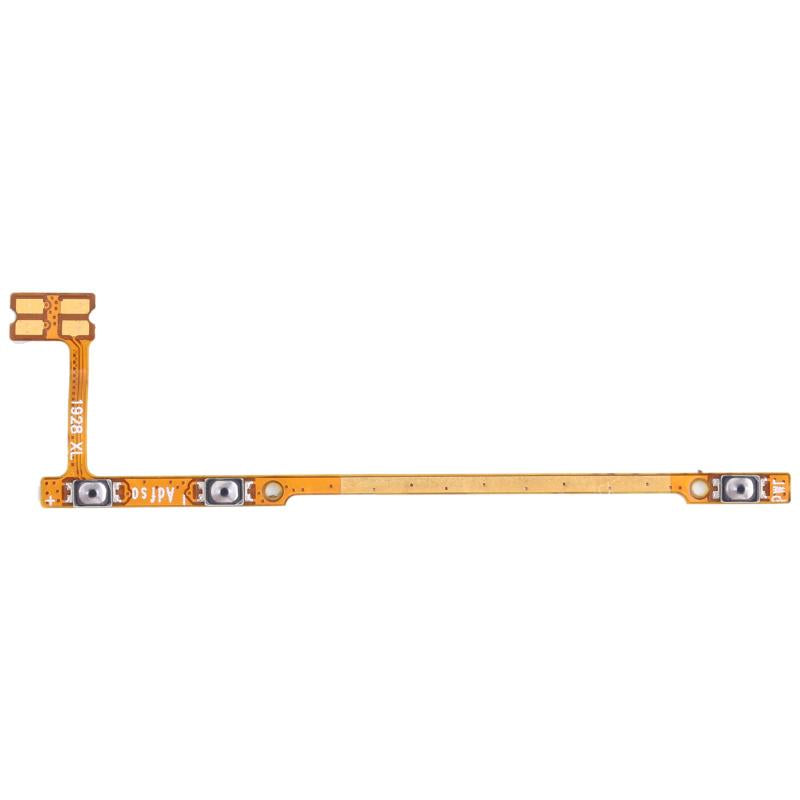

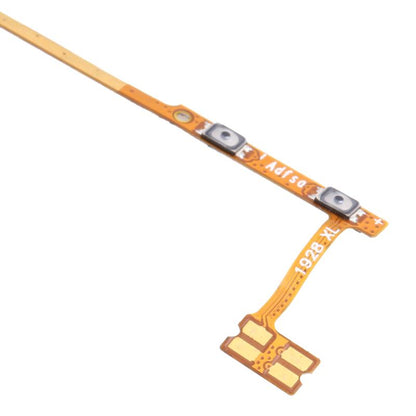

Power and Volume Button Flex Cable
Sony Xperia L4 Power and Volume Button Flex Cable Replacement
- Fits
- Sony Xperia L4
- Fixes
- Buttons not working
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
The power and volume buttons on the Sony Xperia L4 press onto small switches mounted on one flex cable inside the side of the phone. If the switches wear out, or the cable is damaged by a drop or liquid, the buttons stop clicking or stop responding.
This flex cable carries both the power switch and the volume switches, so one part fixes all three buttons. If the outer button caps are missing or broken, they are separate from this cable.
Compatibility
Specifications and compatibility
- Part
- Power and Volume Button Flex Cable
- Compatible with
- Sony Xperia L4
- Model numbers
- XQ-AD51 · XQ-AD52
- Does not fit
- Xperia L3, Xperia 10 or any other model
- Fixes
- A power button or volume buttons that feel flat, do not click or do not respond
- Does not fix
- Missing outer button caps, software freezes or main board faults
- Quality
- Brand new, OEM-quality power and volume button flex cable. Tested before dispatch.
- Brand
- Unbranded, compatible with Sony Xperia L4
- In the box
- 1 × power and volume button flex cable. Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The power button does not wake or lock the screen
- Volume up or down does nothing
- A button feels flat and gives no click
- A button works only when pressed very hard
How to check your model
Open Settings › About phone. The model should read Xperia L4, and the model number should be XQ-AD51 or XQ-AD52. Compare your old part with the photos before fitting.
The Xperia L4 has a tall 6.2-inch screen and three rear cameras. The Xperia L3 is smaller, with a 5.7-inch screen and two rear cameras.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM and card tray.
- Open the phone and disconnect the battery before anything else.
- Unplug the button flex from the board and peel it gently from the frame.
- Fit the new flex in the same position, with the switches lined up behind the buttons.
- Reconnect the battery and test power, volume up and volume down.
- Close the phone and check each button clicks cleanly.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Xperia L4?
Yes, if Settings › About phone shows Xperia L4 (models XQ-AD51 and XQ-AD52). It does not fit the Xperia L3.
Does it fit the Xperia L3?
No. The Xperia L3 uses a different button flex cable.
Does this fix both the power and volume buttons?
Yes. The switches for the power button and both volume buttons are on this one flex cable.
Is it made by Sony?
No. It is a brand new, OEM-quality flex cable made to fit the Sony Xperia L4, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The flex is thin and glued to the frame, and the battery must be disconnected first.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ. Returns are accepted within 30 days from receipt.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
