Charging Port Board
Sony Xperia XA1 Charging Port Board Replacement
- Fits
- Sony Xperia XA1
- Fixes
- Not charging
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

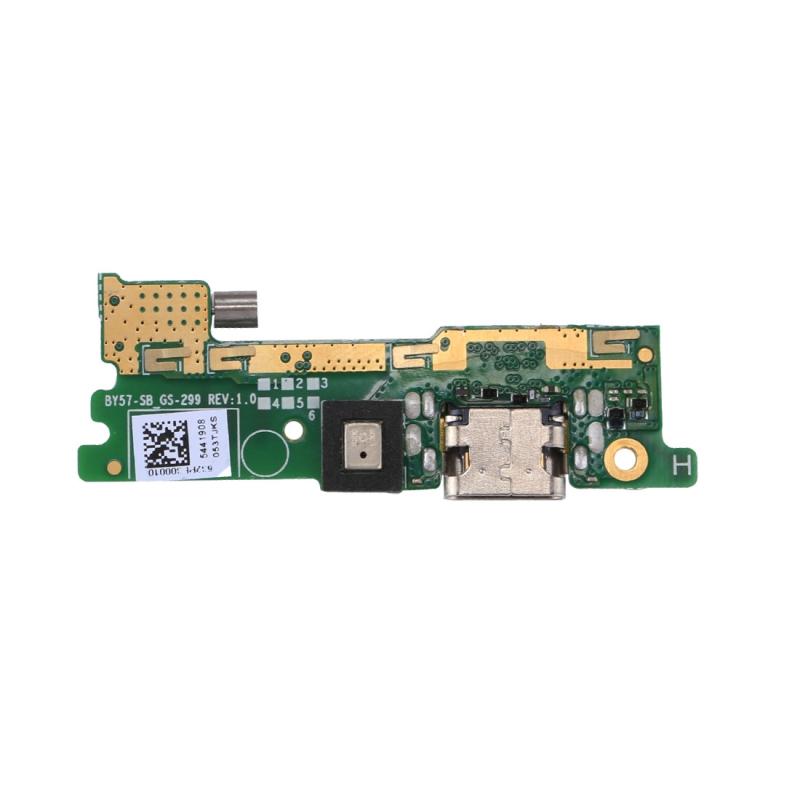

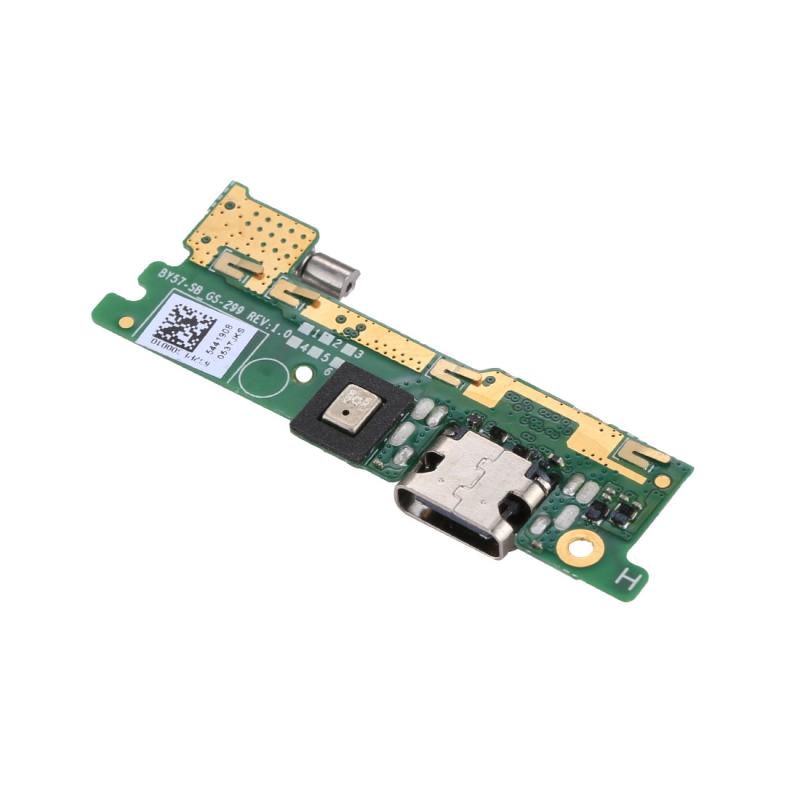

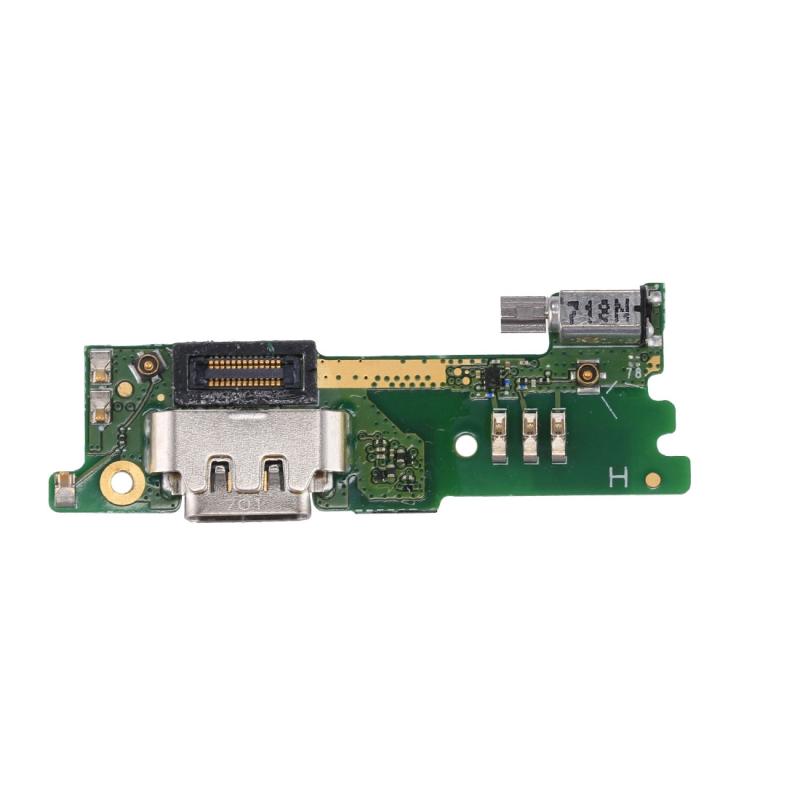

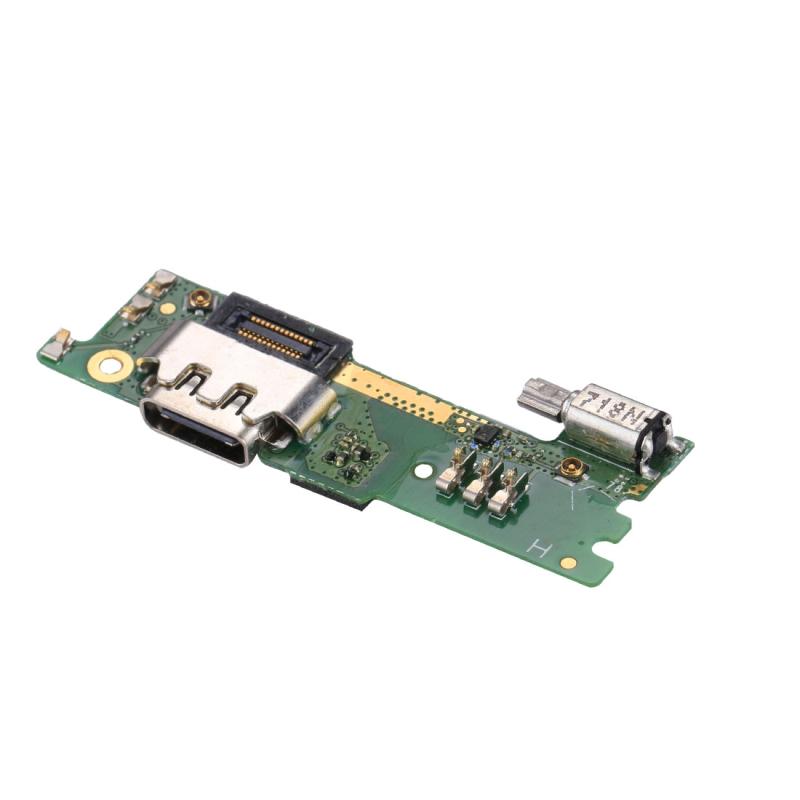

The Sony Xperia XA1 has a USB-C charging socket mounted on a separate board at the bottom of the phone. Daily use, lint and damp wear the socket, and the phone starts charging only now and then.
This is the complete board, so it fits without soldering. Always try another cable and charger and clean the port gently with a non-metal pick first. If charging still drops out, the board is the likely cause.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Sony Xperia XA1
- Model numbers
- G3112 · G3116 · G3121 · G3123 · G3125
- Does not fit
- Xperia XA1 Ultra, XA1 Plus or any other model
- Fixes
- Slow, intermittent or no charging, a loose USB-C socket and no USB data
- Does not fix
- A worn battery, a faulty charger or cable, or main board charging faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Sony Xperia XA1
- In the box
- 1 × charging port board. Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The cable is loose in the USB-C port
- Charging only works at an angle
- The battery drains while plugged in
- A computer does not connect to the phone
How to check your model
Open Settings › About phone. The model should read Xperia XA1, and the model number should be G3112, G3116, G3121, G3123 or G3125. Compare your old part with the photos before fitting.
The Xperia XA1 has a 5-inch screen and a USB-C port. The XA1 Ultra is much larger, with a 6-inch screen.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM and card tray.
- Open the phone and disconnect the battery first.
- Unplug the flex cables and remove the screws holding the charging board.
- Fit the new board and reconnect its cables.
- Reconnect the battery and test charging and USB data.
- Close the phone and test the microphone and charging again.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Xperia XA1?
Yes, if Settings › About phone shows Xperia XA1 (models G3112, G3116, G3121, G3123 and G3125).
Does it fit the Xperia XA1 Ultra?
No. The XA1 Ultra is a larger phone with its own charging board.
Does this board need soldering?
No. The USB-C socket is already fitted to the board, which connects with flex cables.
Is it made by Sony?
No. It is a brand new, OEM-quality charging port board made to fit the Sony Xperia XA1, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The phone must be opened carefully and the battery disconnected first.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ. Returns are accepted within 30 days from receipt.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
