Charging Port Board
Xiaomi Mi 10T 5G Charging Port Board Replacement
- Fits
- Xiaomi Mi 10T 5G
- Fixes
- Not charging
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
On the Xiaomi Mi 10T 5G, the USB-C port is mounted on a small board at the bottom of the phone. The board connects to the main board through a flex cable. Daily plugging in, pocket lint and moisture wear out the port, so the cable feels loose or charging stops.

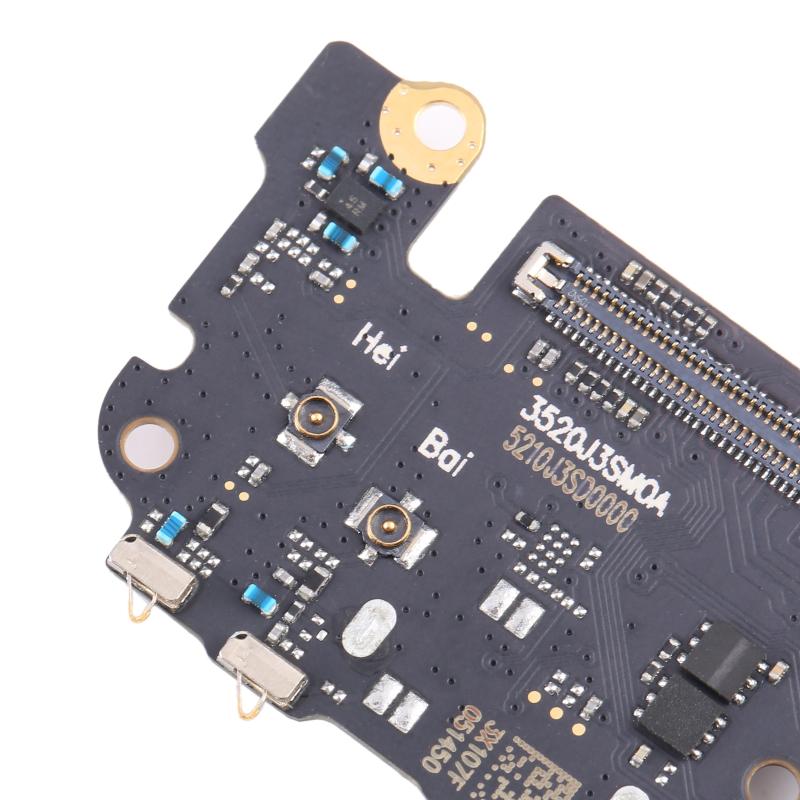

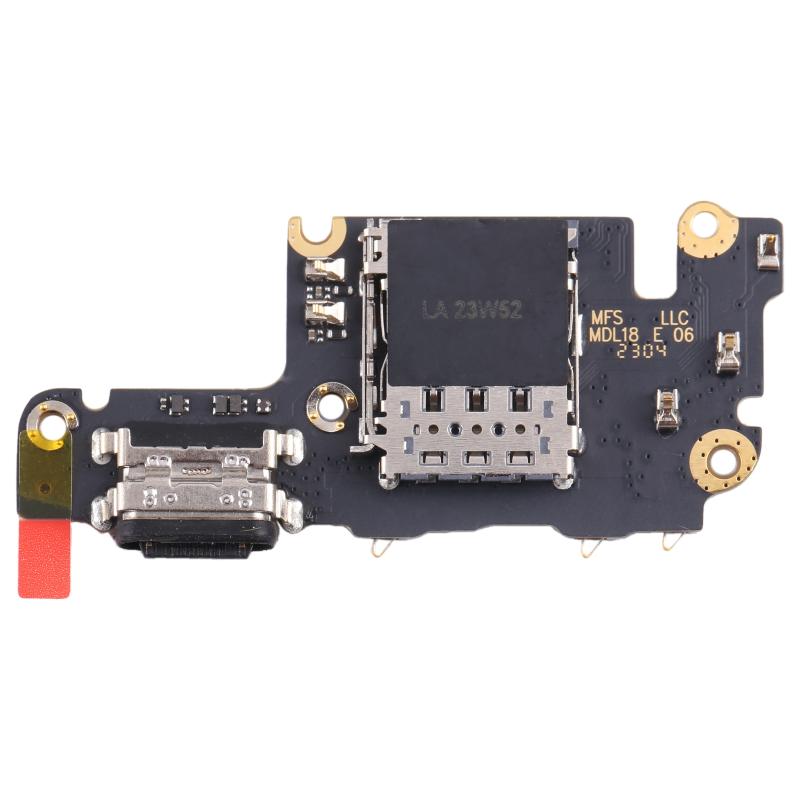

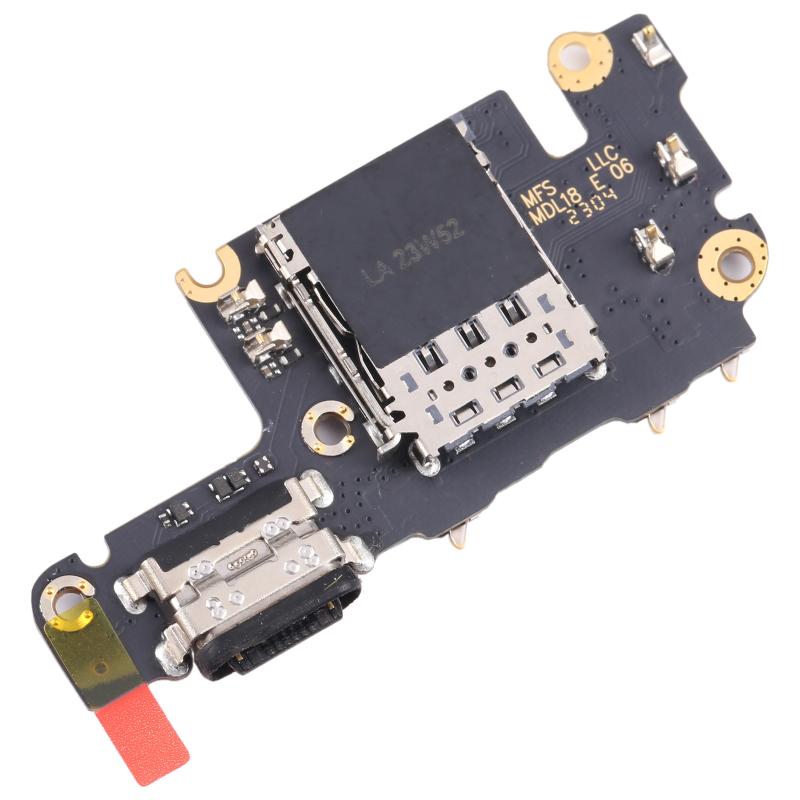

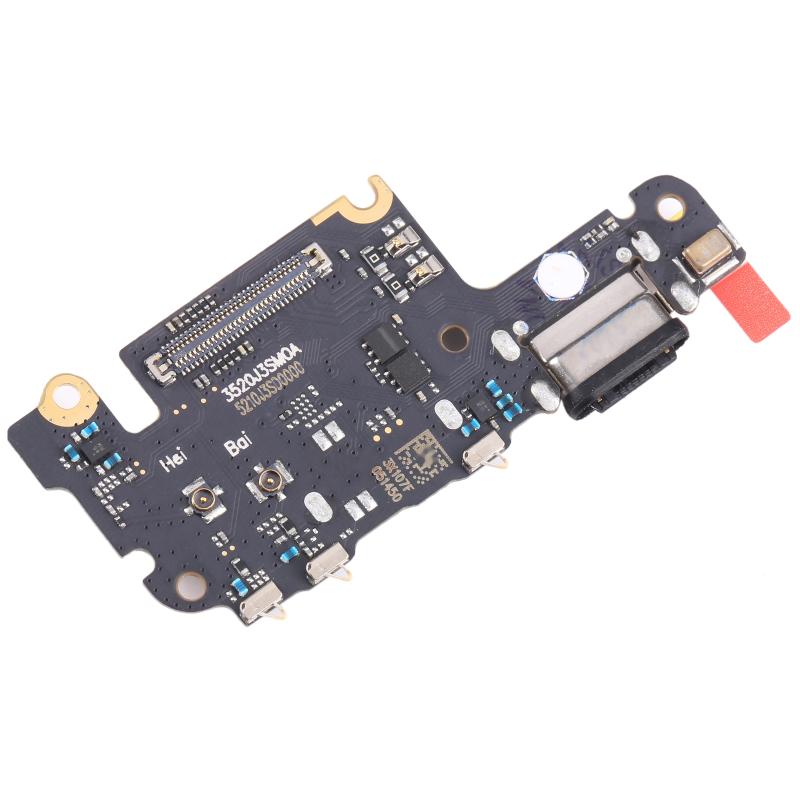

Before replacing it, try a different cable and charger, and clean the port gently with a wooden toothpick. If the phone still charges slowly, only when the cable is held at an angle, or not at all, the port board is the likely fault. The board may also carry the bottom microphone; compare your old board with the photos.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Xiaomi Mi 10T 5G
- Model numbers
- M2007J3SY
- Does not fit
- Mi 10T Pro 5G, Mi 10T Lite 5G or any other model
- Fixes
- Slow charging, no charging, a loose USB-C connection and no data connection to a computer
- Does not fix
- Battery faults, charging chip faults on the main board, or water damage elsewhere
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Xiaomi Mi 10T 5G
- In the box
- 1 × charging port board. Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The phone charges slowly or not at all
- The cable must be held at an angle to charge
- The USB-C plug feels loose or falls out
- A computer does not detect the phone
How to check your model
Open Settings › About phone. The device name should read Mi 10T 5G. The model number (M2007J3SY) is shown in Settings › About phone › Detailed info and specs and on the box.
The Mi 10T 5G has a 6.67-inch 144Hz LCD screen and a 64MP main camera. The Mi 10T Pro has a 108MP main camera but looks almost the same.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM tray.
- Warm the back glass to soften the adhesive and lift it off carefully.
- Remove the screws and lower cover, then disconnect the battery.
- Disconnect the main flex and antenna cables, then lift out the old port board.
- Fit the new board, reconnect every cable and test charging before closing.
- Refit the lower cover, screws and back glass with new adhesive.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Mi 10T 5G?
Yes, if Settings › About phone shows Mi 10T 5G (model M2007J3SY). It does not fit the Mi 10T Pro 5G, Mi 10T Lite 5G or any other model.
Does it fit the Xiaomi Mi 10T Pro 5G?
No. This board is listed for the Mi 10T 5G only. Compare your old board with the photos if you are not sure which model you have.
Will it bring back fast charging?
If the old port was the fault, yes. Fast charging also depends on a working battery, the charging chip on the main board, and the correct Xiaomi-compatible charger and cable.
Is it made by Xiaomi?
No. It is a brand new, OEM-quality charging port board made to fit the Xiaomi Mi 10T 5G, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The Mi 10T 5G must be opened with heat, the battery disconnected, and small coaxial antenna cables refitted correctly.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ. Returns are accepted within 30 days from receipt.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
