Loudspeaker
Xiaomi Mi 11 Pro Loudspeaker Replacement
- Fits
- Xiaomi Mi 11 Pro
- Fixes
- No or distorted sound
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview

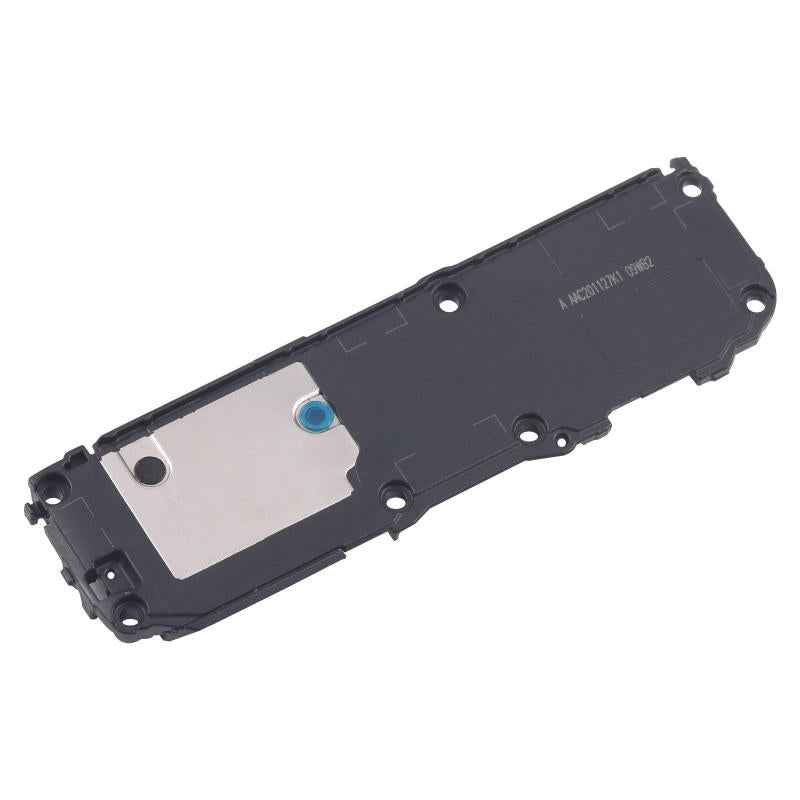

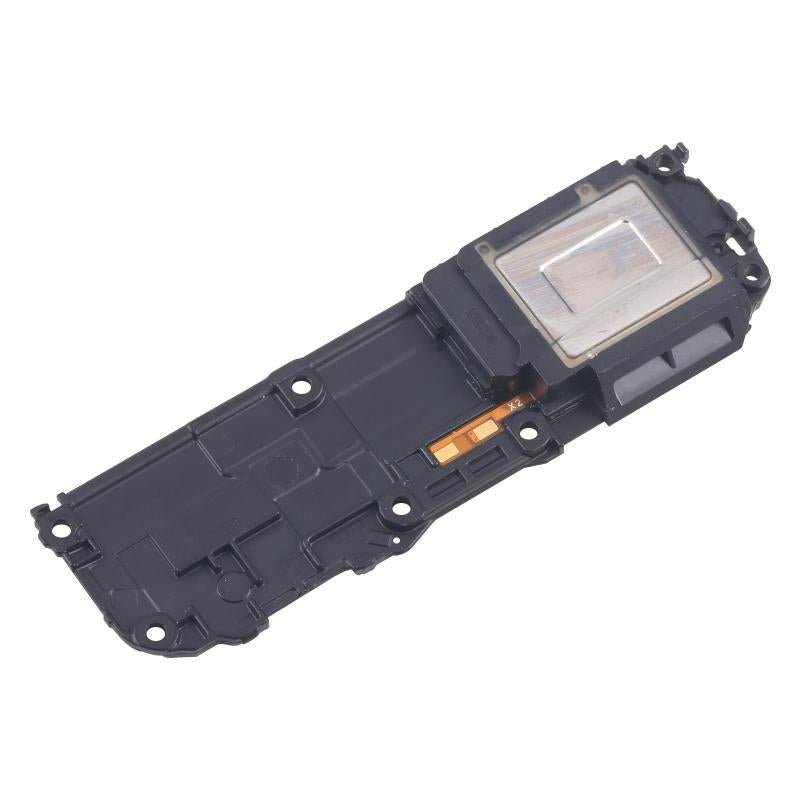

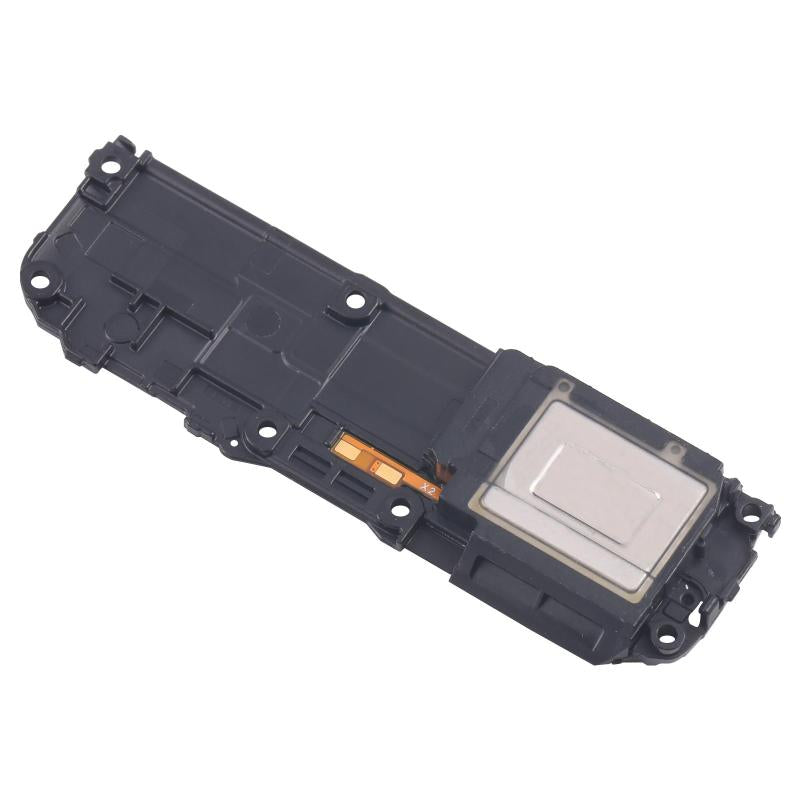

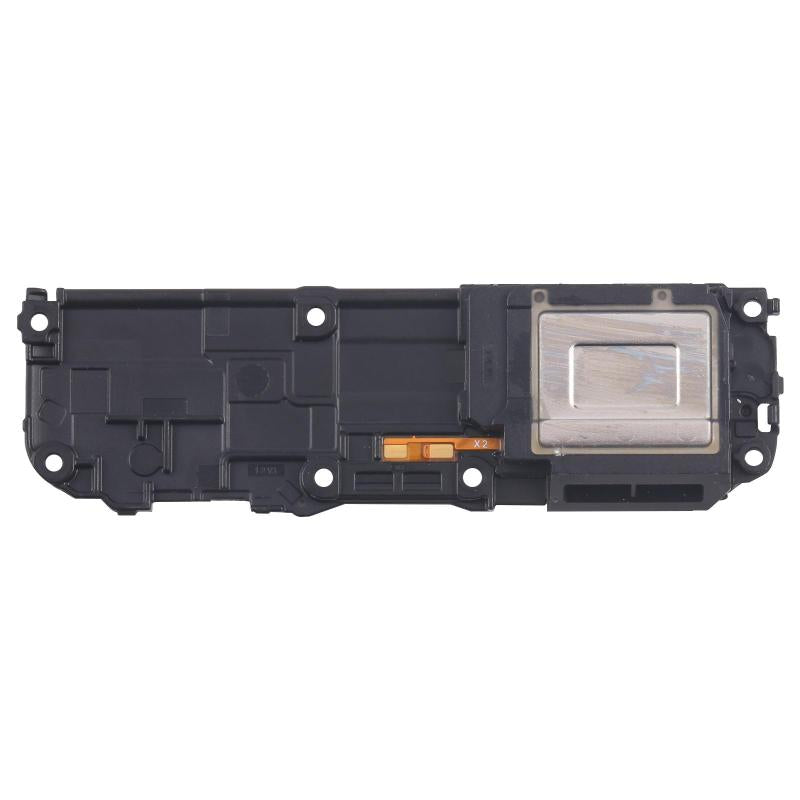

What this part is
The Xiaomi Mi 11 Pro plays ringtones, alarms, media and speakerphone calls through its loudspeaker module. Dust, liquid, a drop or long use at high volume can damage the speaker, so the sound becomes quiet, crackly or stops altogether.
This part replaces the loudspeaker module. Before ordering, clean the speaker grille gently and check that the phone is not connected to a Bluetooth device, as these cause many sound problems. The earpiece you hold to your ear on calls is a separate part.
Compatibility
Specifications and compatibility
- Part
- Loudspeaker
- Compatible with
- Xiaomi Mi 11 Pro
- Model numbers
- M2102K1AC
- Does not fit
- Mi 11, Mi 11 Ultra, Mi 11 Lite or any other model
- Fixes
- Quiet, crackling, buzzing or silent loudspeaker sound
- Does not fix
- Earpiece faults, microphone faults, audio chip faults on the main board or Bluetooth settings
- Quality
- Brand new, OEM-quality loudspeaker module. Tested before dispatch.
- Brand
- Unbranded, compatible with Xiaomi Mi 11 Pro
- In the box
- 1 × loudspeaker module.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- Ringtones and alarms are very quiet or silent
- Music and videos sound crackly or distorted
- The other person cannot be heard on speakerphone
- Sound stopped after the phone got wet or was dropped
How to check your model
Open Settings › About phone. The device name should read Mi 11 Pro. The model number (for example M2102K1AC) is shown under All specs and on the phone's box. Compare your old part with the photos before fitting.
The Xiaomi Mi 11 Pro has a 6.81-inch curved AMOLED screen and a large rectangular camera bump with a 50MP main camera. The Mi 11 Ultra looks similar but has a small second screen in its camera bump.
Professional installation
How a technician fits this part
- Power the phone off and warm the back cover edges to soften the adhesive.
- Lift the back cover carefully and disconnect the battery first.
- Remove the screws and lift out the old loudspeaker module.
- Fit the new loudspeaker in the same position and tighten the screws.
- Reconnect the battery and test ringtones, media and speakerphone before closing.
- Apply new adhesive, refit the back cover and press evenly while it cures.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Mi 11 Pro?
Yes, if Settings › About phone shows Mi 11 Pro (model M2102K1AC).
Does it fit the Mi 11 Ultra?
No. This loudspeaker is made for the Mi 11 Pro only. The Mi 11 Ultra uses a different part, so check Settings › About phone before ordering.
Will this fix the sound on phone calls?
It fixes the loudspeaker used for ringtones, media and speakerphone. If you cannot hear the caller with the phone held to your ear, that is the earpiece, which is a separate part.
Is it made by Xiaomi?
No. It is a brand new, OEM-quality loudspeaker made to fit the Xiaomi Mi 11 Pro, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The back cover is glued on and the battery must be disconnected safely before the speaker is removed.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
