Charging Port Board
Xiaomi Mi 8 Charging Port Board Replacement
- Fits
- Xiaomi Mi 8
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

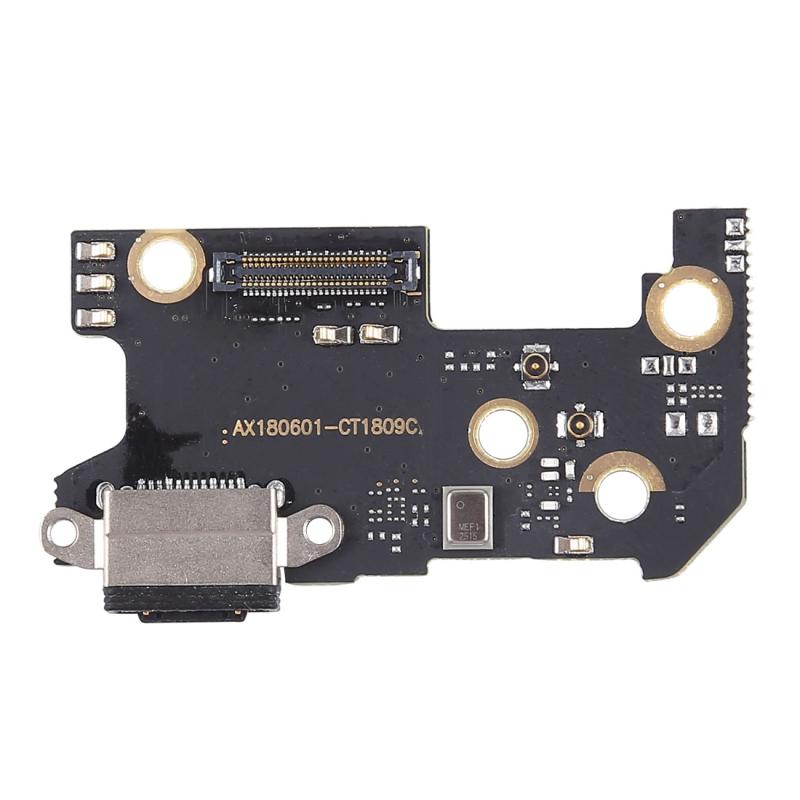

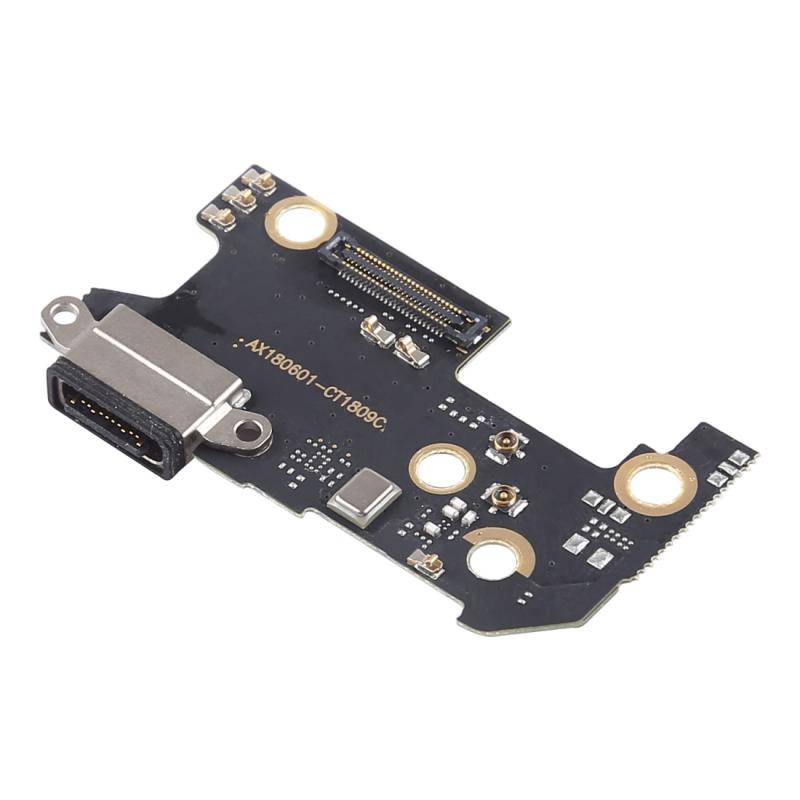

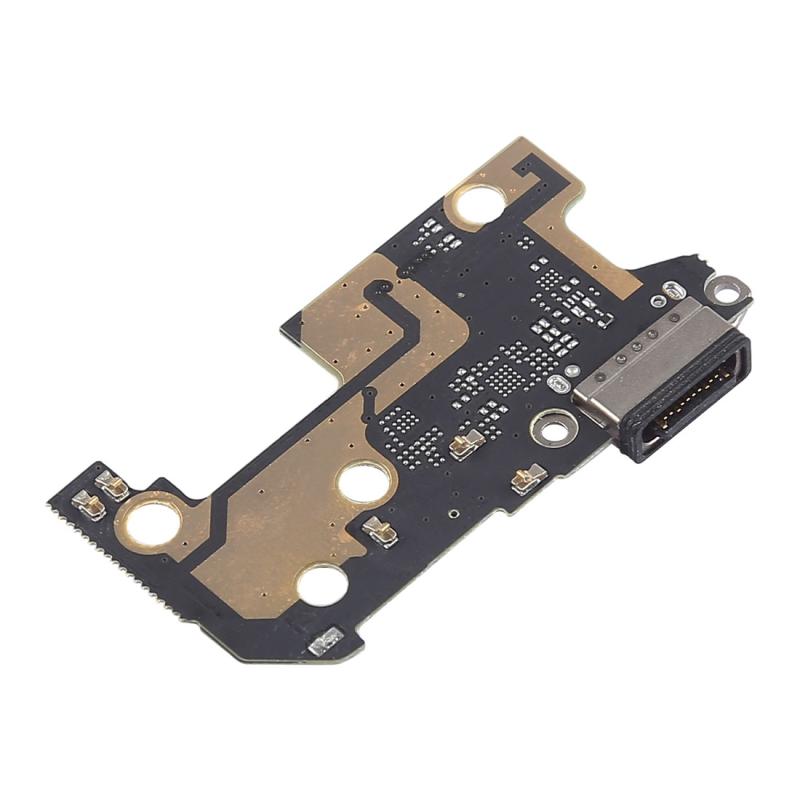

The Xiaomi Mi 8 charges through a USB-C port mounted on a small board at the bottom of the phone. Everyday plugging in, dirt and liquid wear the port, so the cable feels loose, charging stops and starts, or the phone is not seen by a computer.
This part replaces the whole board, not just the socket. Before ordering, try a different cable and charger and gently clear any lint from the port, as these fix many charging problems.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Xiaomi Mi 8
- Model numbers
- M1803E1A
- Does not fit
- Mi 8 Lite, Mi 8 SE, Mi 8 Pro or any other model
- Fixes
- Loose, slow or intermittent charging and USB data faults caused by the port
- Does not fix
- Battery faults, charging chip faults on the main board or a faulty charger or cable
- Quality
- Brand new, OEM-quality USB-C charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Xiaomi Mi 8
- In the box
- 1 × charging port board. Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The phone only charges when the cable is held at an angle
- The cable feels loose or falls out
- Charging is very slow or keeps stopping
- A computer does not detect the phone over USB
How to check your model
Open Settings › About phone. The device name should read Mi 8. The model number (for example M1803E1A) is shown under All specs and on the phone's box. Compare your old part with the photos before fitting.
The Xiaomi Mi 8 has a 6.21-inch AMOLED screen with a wide notch and two vertical rear cameras. The Mi 8 Lite and Mi 8 SE are smaller, lower-priced models with different internal parts.
Professional installation
How a technician fits this part
- Power the phone off and warm the back cover edges to soften the adhesive.
- Lift the back cover carefully and disconnect the battery first.
- Remove the bottom cover and disconnect the flex cables from the old part.
- Fit the new charging port part and reconnect every flex cable.
- Reconnect the battery and test charging, USB data and the microphone.
- Apply new adhesive, refit the back cover and press evenly while it cures.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Mi 8?
Yes, if Settings › About phone shows Mi 8 (model M1803E1A).
Does it fit the Mi 8 Lite?
No. This part is listed for the Mi 8 only. The Mi 8 Lite uses a different charging port part, so check Settings › About phone before ordering.
Does it support fast charging?
It replaces the charging port so the phone can charge normally again. Charging speed also depends on your charger, cable and battery.
Is it made by Xiaomi?
No. It is a brand new, OEM-quality charging port board made to fit the Xiaomi Mi 8, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The back cover is glued on and several flex cables must be moved across to the new part.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
