Charging Port Board
LG K22 Charging Port Board Replacement
- Fits
- LG K22
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
On the LG K22 the charging port sits on a small sub-board at the bottom of the phone, joined to the main board by a flex cable. Daily plugging in, pocket lint and drops wear the port out, and the phone stops charging reliably.

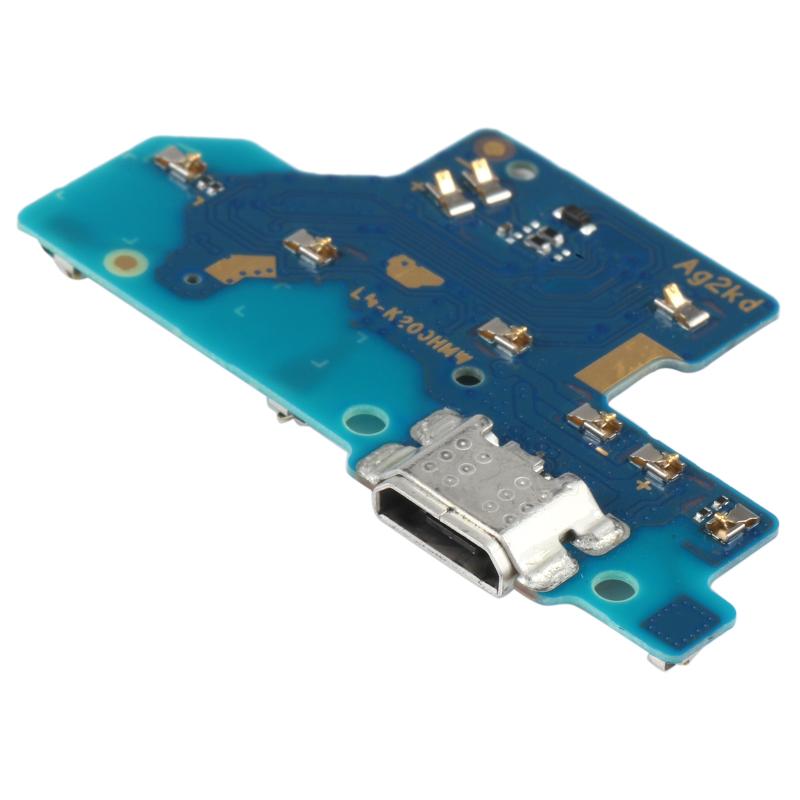

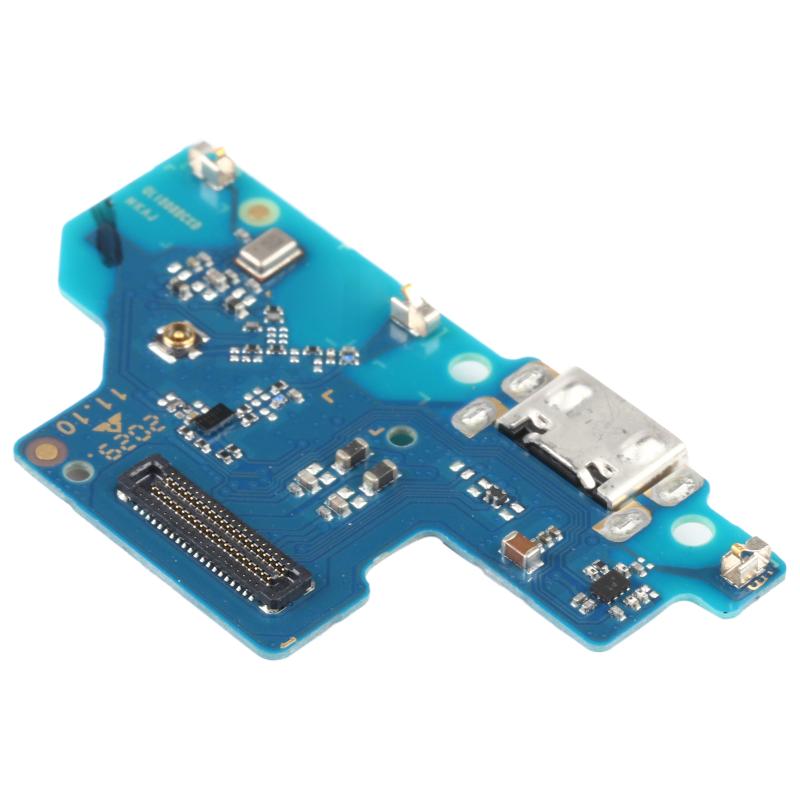

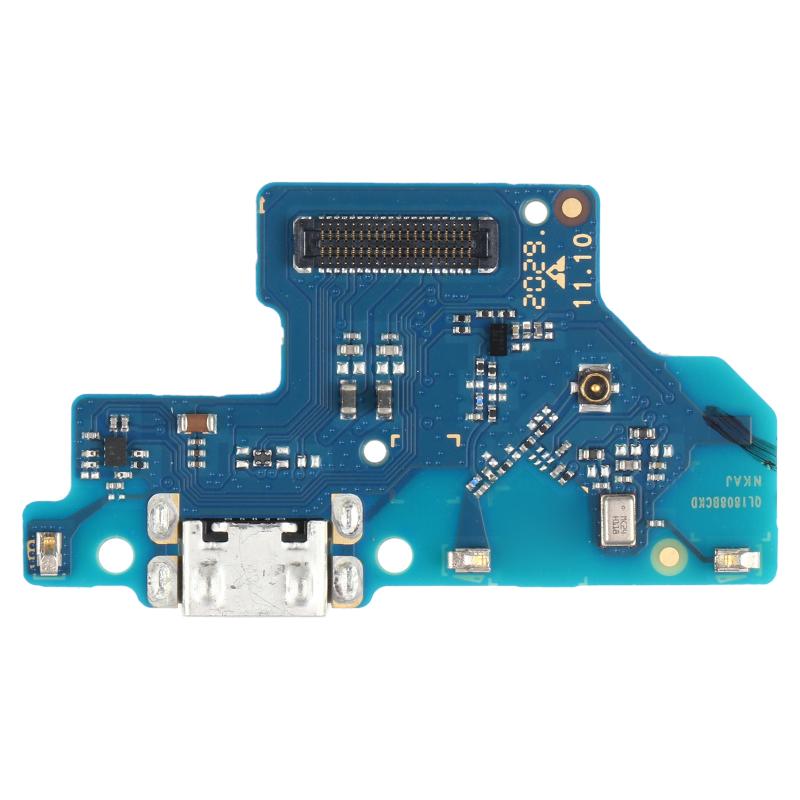

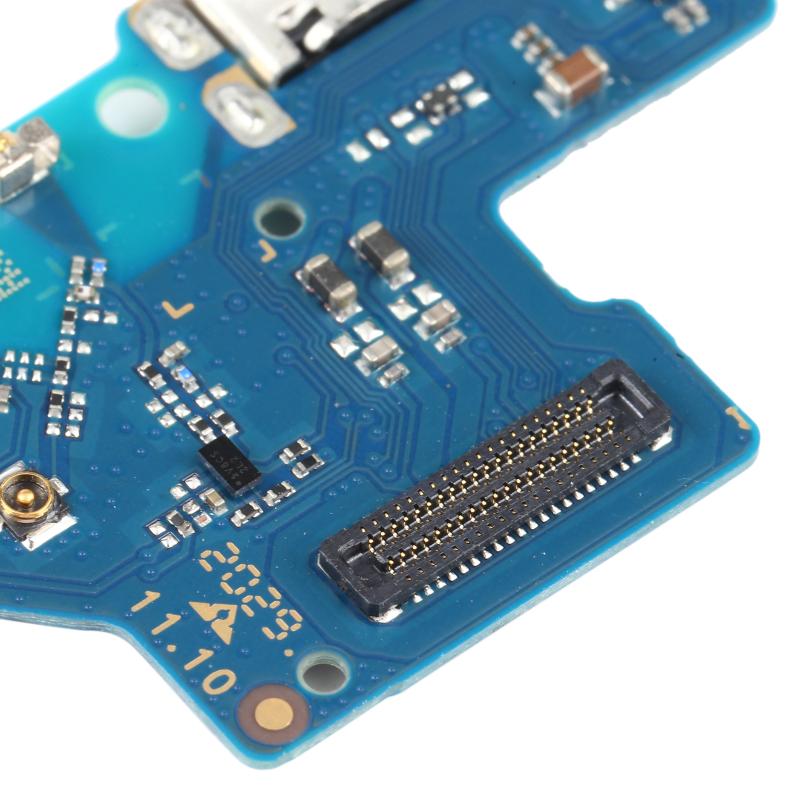

This is the complete charging port board, so the whole board is swapped as one part and the port itself does not need soldering. If the phone still does not charge with a new board and a known good cable, the battery or main board may be at fault.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- LG K22
- Model numbers
- LM-K200 · LMK200Z · LMK200E · LMK200B
- Does not fit
- LG K20, K41S, K42 or K52 or any other model
- Fixes
- Loose, slow or intermittent charging and lost USB data connection
- Does not fix
- Battery, screen or main board faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with LG K22
- In the box
- 1 × charging port board for LG K22.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The charger only works at a certain angle, or not at all
- The cable feels loose or falls out of the port
- Charging keeps starting and stopping
- The phone is not seen by a computer over USB
- Cleaning the port has not helped
How to check your model
Open Settings › About phone (on some versions Settings › General › About phone). The model number should read LM-K200 (LMK200Z, LMK200E or LMK200B).
The LG K42 and K52 look similar but use different charging boards.
Professional installation
How a technician fits this part
- Power the LG K22 off and remove the SIM tray.
- Lift the back cover off carefully with a plastic opening tool.
- Remove the screws holding the lower cover and disconnect the battery connector first.
- Unplug the flex cable from the old charging port board and lift it out.
- Fit the new board, reconnect the flex cable and refit the lower cover and screws.
- Reconnect the battery, refit the back cover, power on and test charging with a known good cable.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my LG K22?
Yes, if your model is LM-K200, LMK200Z, LMK200E or LMK200B.
Does it fit the LG K42?
No. The K42 is a different phone with a different charging board.
Do I need to solder anything?
No. This is a complete board with the port already fitted. It connects with a flex cable and screws.
Is it made by LG?
No. It is a brand new, OEM-quality part made to fit the LG K22, and every part is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The LG K22 must be opened with plastic tools, and the battery must be disconnected before the new board is connected.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
