Charging Port Board
Samsung Galaxy Tab S9 FE Charging Port Board Replacement
- Fits
- Samsung Galaxy Tab S9 FE
- Fixes
- Charging faults
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is
The USB-C port on the Samsung Galaxy Tab S9 FE is used every day, so it wears out, collects pocket lint and can be bent by a cable pulled at an angle. When it fails the tablet may charge only at one angle, charge very slowly or not at all, and may stop connecting to a computer.

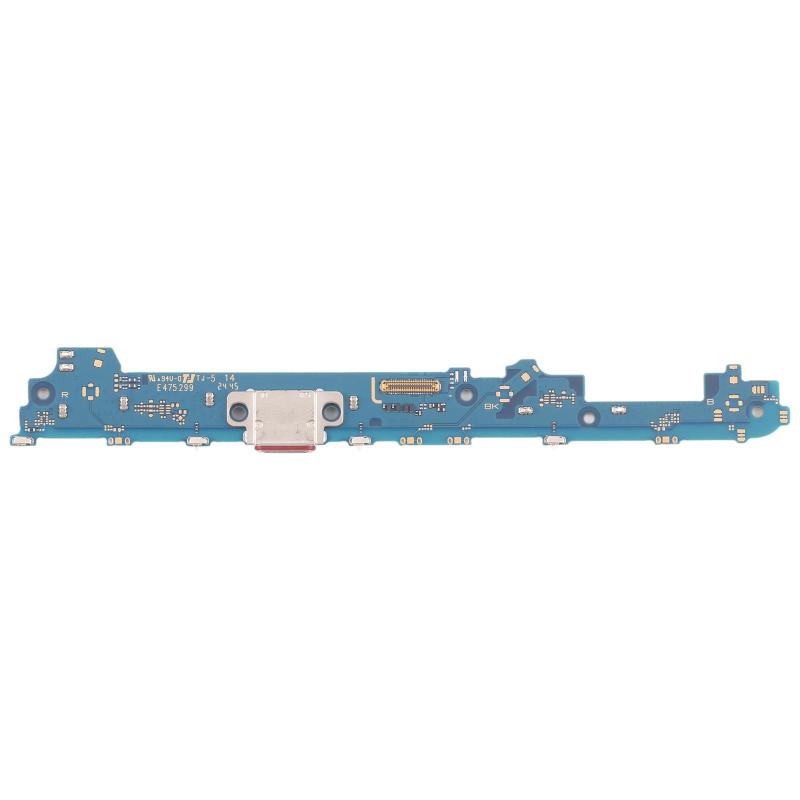

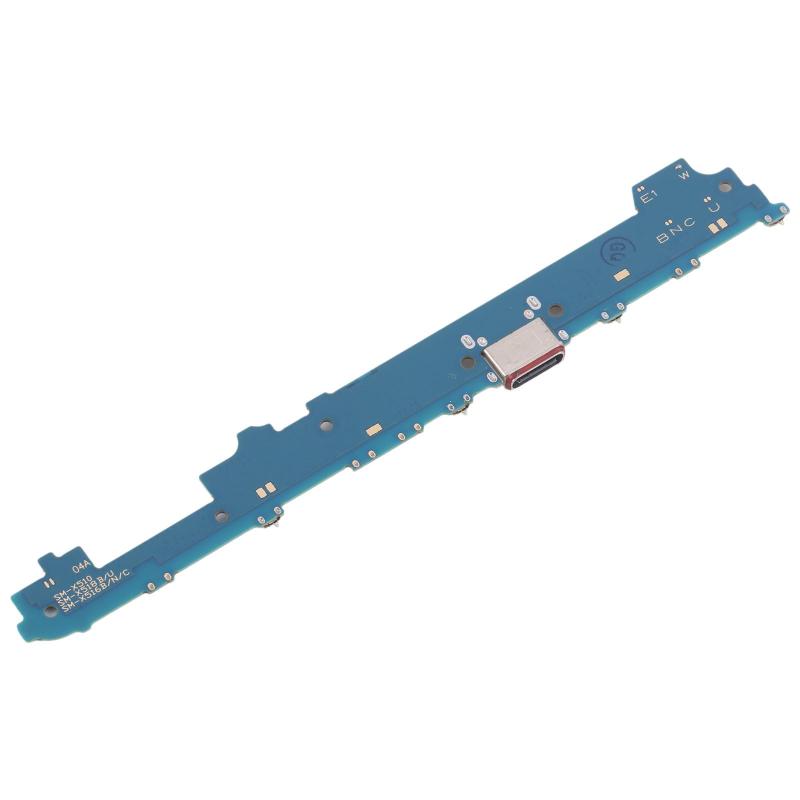

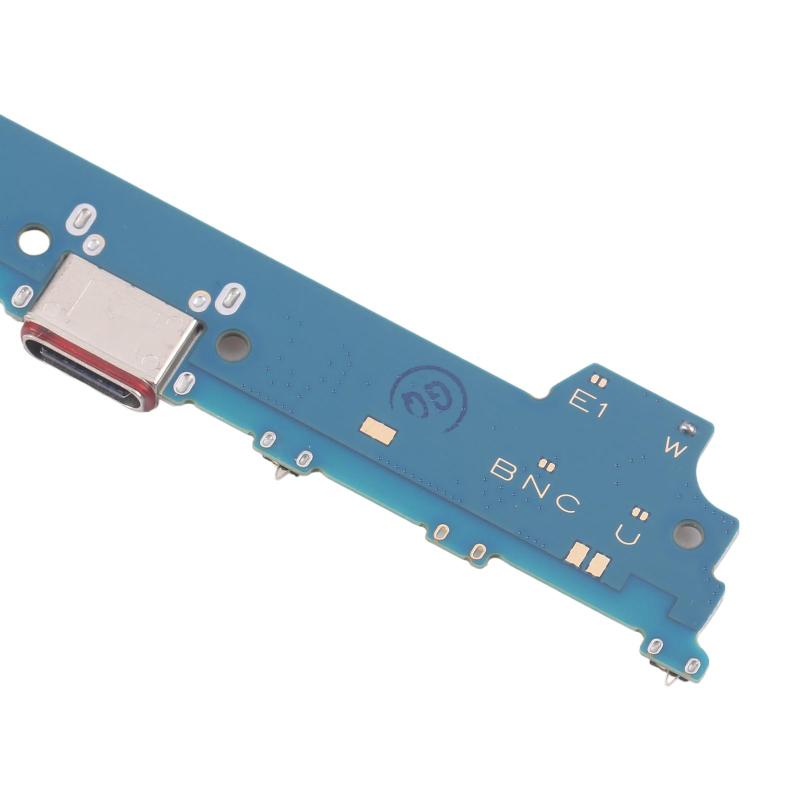

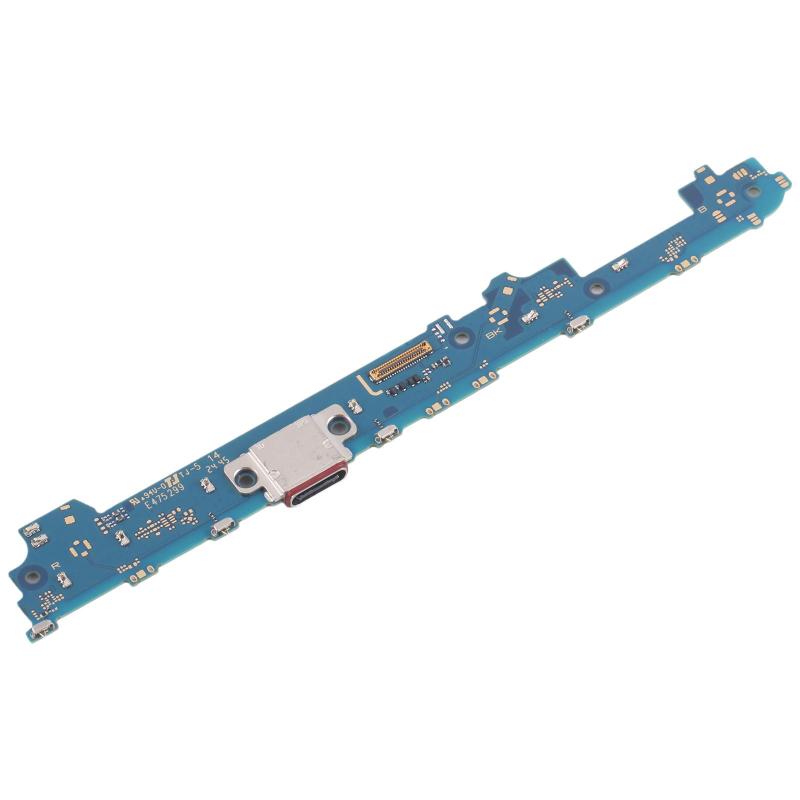

This part is the complete port board, not only the socket, so no soldering of the port is needed. Before replacing it, try another cable and charger and gently clear lint from the port with a plastic tool. If charging is still unreliable, the port board is the likely fault.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Samsung Galaxy Tab S9 FE
- Model numbers
- SM-X510
- Does not fit
- the Tab S9 FE 5G, Tab S9 FE+, Tab S9 or any other model
- Fixes
- No charging, slow or intermittent charging, a loose USB-C cable and data connection faults
- Does not fix
- Battery faults, charging chip faults on the main board or software issues
- Quality
- Brand new, OEM-quality USB-C charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Samsung Galaxy Tab S9 FE
- In the box
- 1 × charging port board. Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The tablet charges only when the cable is held at an angle
- The cable feels loose or falls out of the port
- Charging is much slower than before, or does not start
- A computer no longer detects the tablet over USB
How to check your model
Open Settings › About tablet. The model name should read Galaxy Tab S9 FE and the model number should be SM-X510. This board is for the Wi-Fi version.
The Galaxy Tab S9 FE has a 10.9-inch screen. The Tab S9 FE+ is larger, at 12.4 inches. The 5G version has a different model number, so check it before ordering.
Professional installation
How a technician fits this part
- Power the tablet off completely.
- Warm the edges to soften the adhesive and open the tablet carefully with thin tools.
- Disconnect the battery before touching any other part.
- Remove the screws and flex cables holding the old port board and lift it out.
- Fit the new board, reconnect the cables and test charging before closing.
- Reseal the tablet with new adhesive and run a final check of charging and data.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Galaxy Tab S9 FE?
Yes, if Settings › About tablet shows model number SM-X510. It is for the Wi-Fi version only.
Does it fit the Galaxy Tab S9 FE+?
No. The Tab S9 FE+ is larger and uses a different port board. This part is for the Tab S9 FE (SM-X510) only.
How do I know the port is the problem?
Try a different cable and charger first, and clear any lint from the port with a plastic tool. If charging still cuts out or only works at an angle, the port board is the likely fault.
Is it made by Samsung?
No. It is a brand new, OEM-quality USB-C charging port board made to fit the Samsung Galaxy Tab S9 FE, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The tablet is sealed with adhesive, the screen can crack if forced, and the battery must be disconnected first.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ. Returns are accepted within 30 days from receipt.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
