Loudspeaker
Sony Xperia L1 Loudspeaker Replacement
- Fits
- Sony Xperia L1
- Fixes
- No sound
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

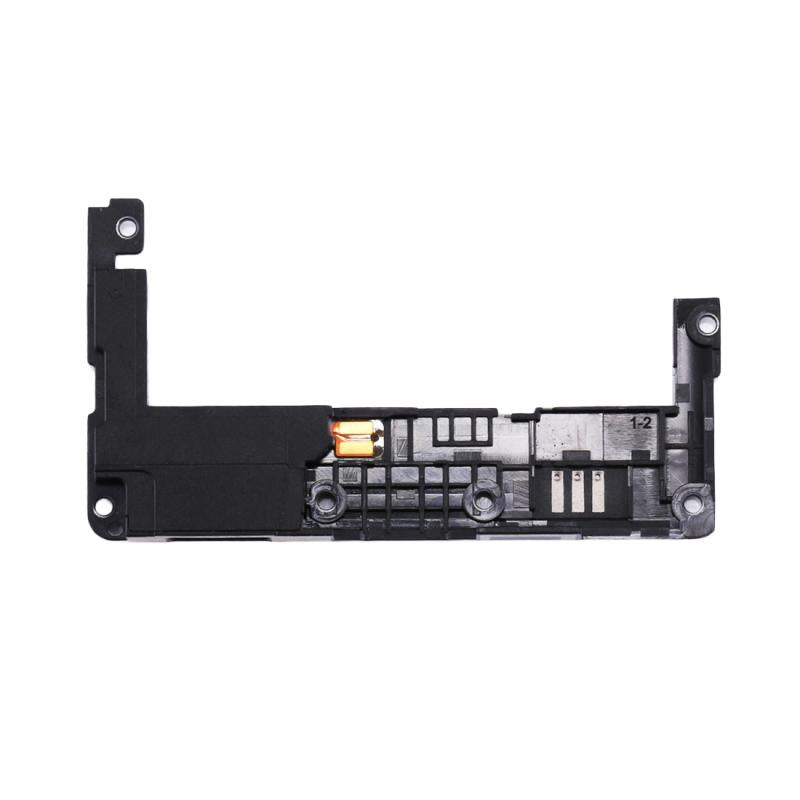

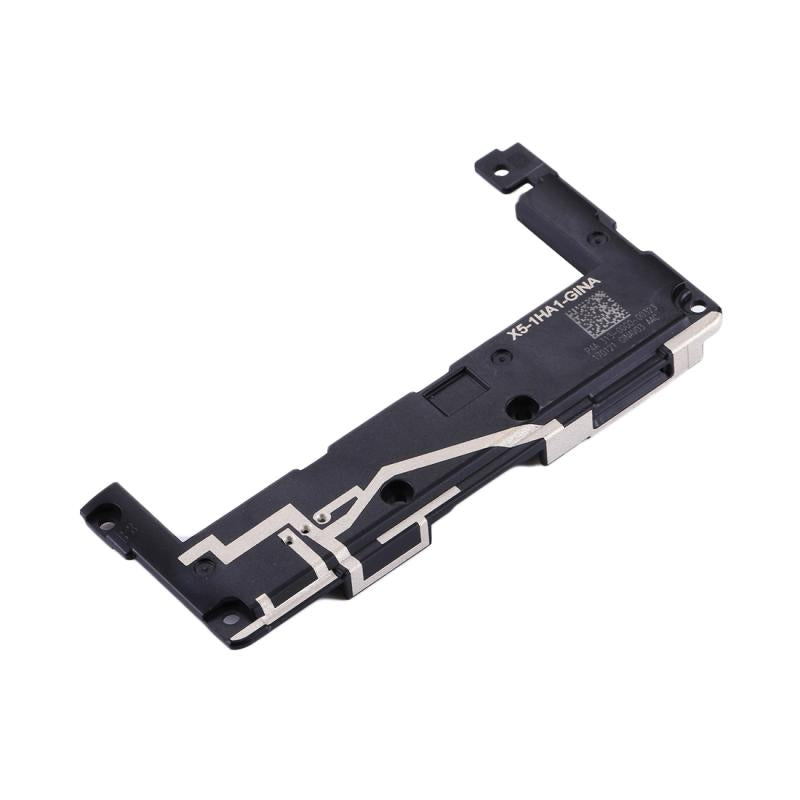

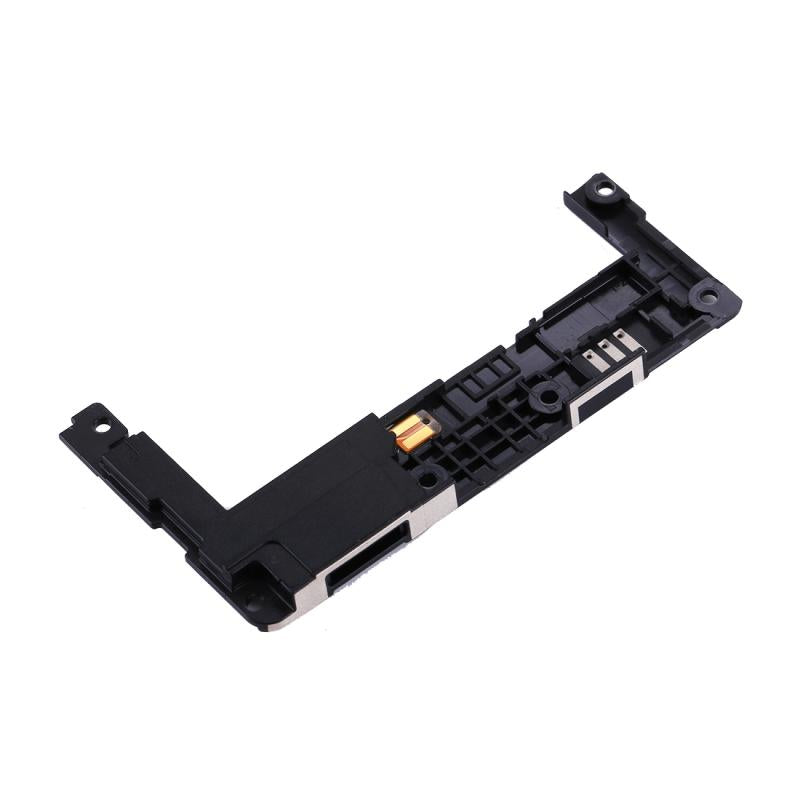

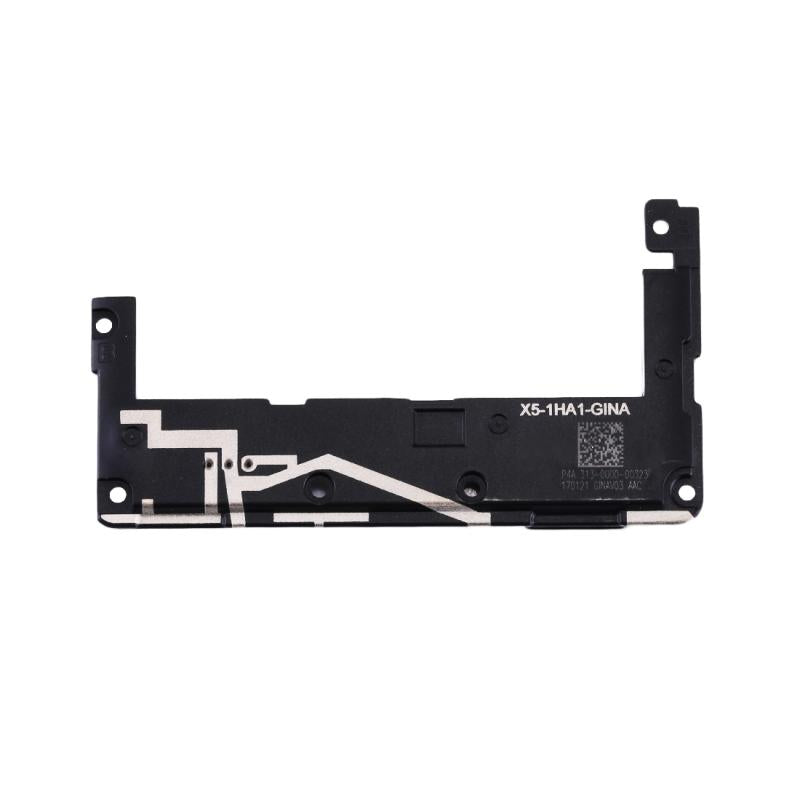

The loudspeaker in the Sony Xperia L1 plays ringtones, alerts, media and hands-free calls. Water, dust and loud use can damage the speaker, so the sound becomes quiet, distorted or stops altogether.
Before replacing it, check the volume, turn off Do Not Disturb and clean the speaker grille gently. If the speaker is still silent or crackles but headphones or Bluetooth sound fine, the speaker is the likely fault. The earpiece used for normal calls is a separate part.
Compatibility
Specifications and compatibility
- Part
- Loudspeaker
- Compatible with
- Sony Xperia L1
- Model numbers
- G3311 · G3312 · G3313
- Does not fit
- Xperia L2, L3, XA1 or any other model
- Fixes
- Quiet, crackling, distorted or no sound from the loudspeaker for ringtones, media and speakerphone
- Does not fix
- Earpiece faults, microphone faults or audio chip faults on the main board
- Quality
- Brand new, OEM-quality loudspeaker. Tested before dispatch.
- Brand
- Unbranded, compatible with Sony Xperia L1
- In the box
- 1 × loudspeaker. Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- Ringtones and alarms are very quiet or silent
- Music and videos crackle or buzz at normal volume
- Speakerphone calls cannot be heard
- Sound works through headphones or Bluetooth but not the speaker
How to check your model
Open Settings › About phone. The model should read Xperia L1 and the model number should be G3311, G3312 or G3313. Compare your old part with the photos before fitting.
The Xperia L1 has a 5.5-inch screen and a USB-C charging port.
Professional installation
How a technician fits this part
- Power the phone off and remove the SIM and memory card tray.
- Open the phone carefully with a plastic opening tool.
- Disconnect the battery before touching any other part.
- Remove the screws and cover over the bottom of the phone, then lift out the old speaker.
- Fit the new speaker in the same position and refit the cover and screws.
- Reconnect the battery, test the speaker, then close the phone.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Xperia L1?
Yes, if Settings › About phone shows Xperia L1 (models G3311, G3312 and G3313). It does not fit the Xperia L2, L3, XA1 or any other model.
Does it fit the Xperia L2?
No. The Xperia L2 is a different phone with a different speaker. This part is for the Xperia L1 only.
How do I know it is the speaker and not a software fault?
Restart the phone and play a video at full volume. If headphones or Bluetooth work but the speaker is silent or crackles, the speaker is the likely fault.
Is it made by Sony?
No. It is a brand new, OEM-quality loudspeaker made to fit the Sony Xperia L1, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The phone must be opened carefully and the battery disconnected before the speaker is changed.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ. Returns are accepted within 30 days from receipt.
