Charging Port Board
Sony Xperia XA2 Charging Port Board Replacement
- Fits
- Sony Xperia XA2
- Fixes
- Not charging
- Quality
- Brand new, OEM quality
- Fitting
- Professional install
Overview
What this part is

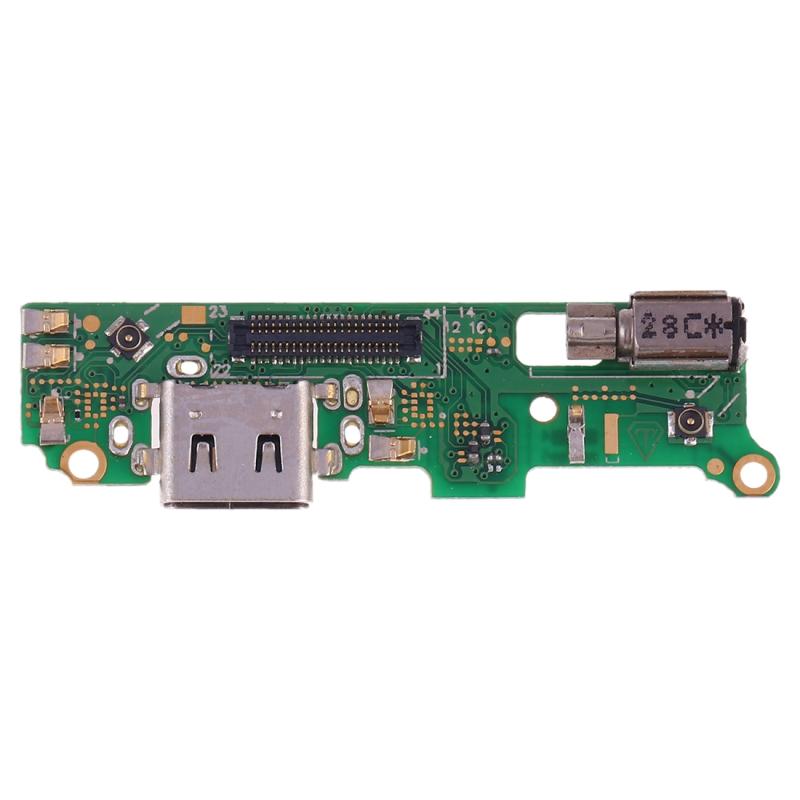

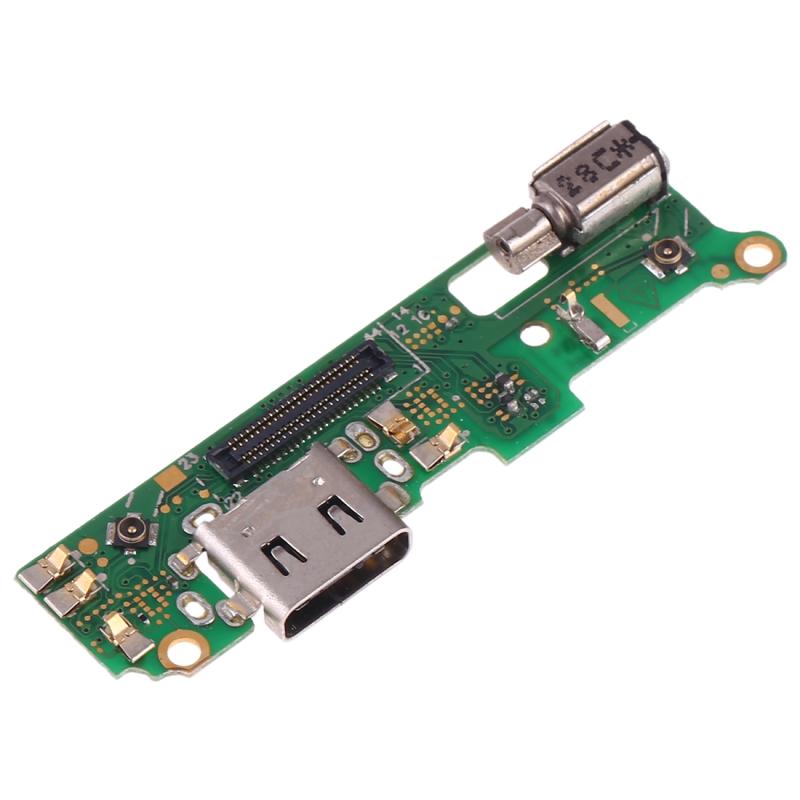

In the Sony Xperia XA2 the USB-C socket sits on its own small board at the base of the phone, linked to the main board by a flex cable. As the socket wears or fills with lint, the plug stops gripping and charging becomes unreliable.
This full board fits without soldering. Rule out a bad cable or charger and clean the port carefully first. If the fault stays, replace the board.
Compatibility
Specifications and compatibility
- Part
- Charging Port Board
- Compatible with
- Sony Xperia XA2
- Model numbers
- H3113 · H3123 · H3133 · H4113 · H4133
- Does not fit
- Xperia XA2 Ultra, XA2 Plus or any other model
- Fixes
- Loose USB-C socket, stop-start charging and no USB data
- Does not fix
- A worn battery, a faulty charger or cable, or main board charging faults
- Quality
- Brand new, OEM-quality charging port board. Tested before dispatch.
- Brand
- Unbranded, compatible with Sony Xperia XA2
- In the box
- 1 × charging port board. Check the photos for any extra items.
- Colour
- As shown in the photos
- Installation
- Professional installation recommended
- Supplied by
- Supreme Phone Parts Ltd, Manchester, UK
Before you order
Is this the right part?
Signs it needs replacing
- The USB-C plug slips out easily
- Charging starts and stops when the cable moves
- The phone charges very slowly
- The phone does not appear on a computer
How to check your model
Open Settings › About phone. The model should read Xperia XA2, and the model number should be H3113, H3123, H3133, H4113 or H4133. Compare your old part with the photos before fitting.
The Xperia XA2 has a 5.2-inch screen and a single front camera. The XA2 Ultra is larger, with a 6-inch screen and two front cameras.
Professional installation
How a technician fits this part
- Switch the phone off and remove the SIM and card tray.
- Open the phone and disconnect the battery first.
- Remove the screws and flex connectors holding the charging board.
- Fit the new board and reconnect the flex cables.
- Reconnect the battery and test charging and USB data.
- Close the phone and run a final charging test.
Check that the part matches the device before fitting it or removing any adhesive backing. Once a part has been fitted, it cannot be returned for a change of mind. Faulty parts are always covered.
FAQ
Frequently asked questions
Will this fit my Xperia XA2?
Yes, if Settings › About phone shows Xperia XA2 (models H3113, H3123, H3133, H4113 and H4133).
Does it fit the Xperia XA2 Ultra?
No. The XA2 Ultra has its own charging board, which we list separately.
Is soldering needed?
No. The socket is already on the board, which fits with screws and flex connectors.
Is it made by Sony?
No. It is a brand new, OEM-quality charging port board made to fit the Sony Xperia XA2, and it is tested before dispatch.
Should I fit it myself?
We recommend professional installation. The phone must be opened with care and the battery disconnected first.
How quickly will it arrive?
Orders placed before 4pm on a working day are dispatched the same day from Manchester by Royal Mail Tracked. Delivery is free on UK orders over £5. You can also collect from our shop at 33 Moulton Street, Manchester M8 8FQ. Returns are accepted within 30 days from receipt.
Prepared by the Supreme Phone Parts team, Manchester. Last updated September 2026.
